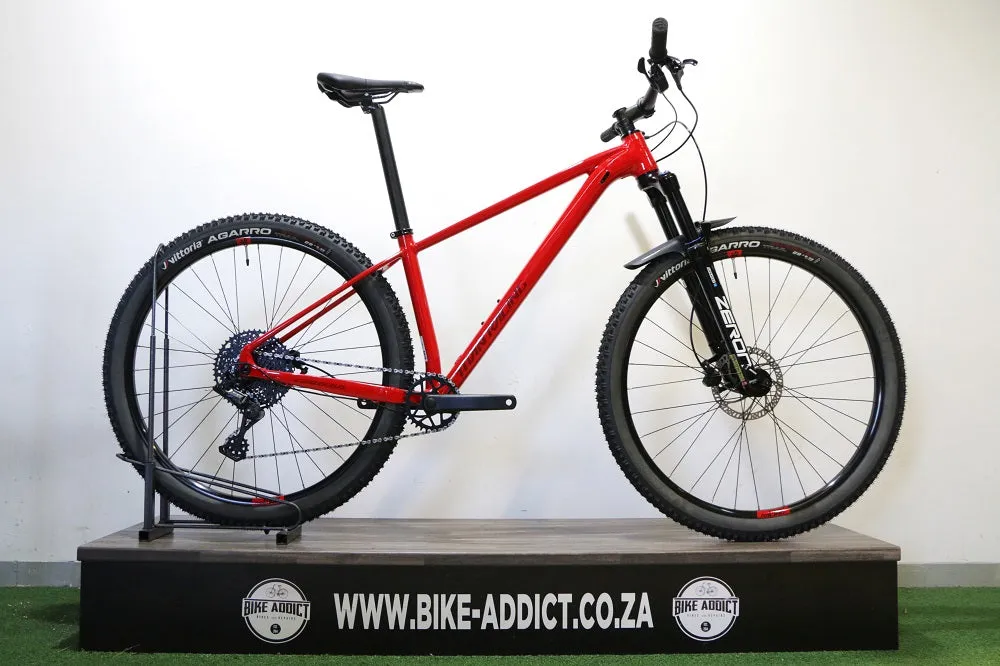

FRAME
CERBERUS 29ER X6 ALUMINIUM TRAIL FRAME
MODERN PROGRESSIVE GEOMETRY / HYDROFROMED TUBING / INTERNAL CABLE ROUTING / BOOST 148MM THRU AXLE AND SLIDING DROPOUT

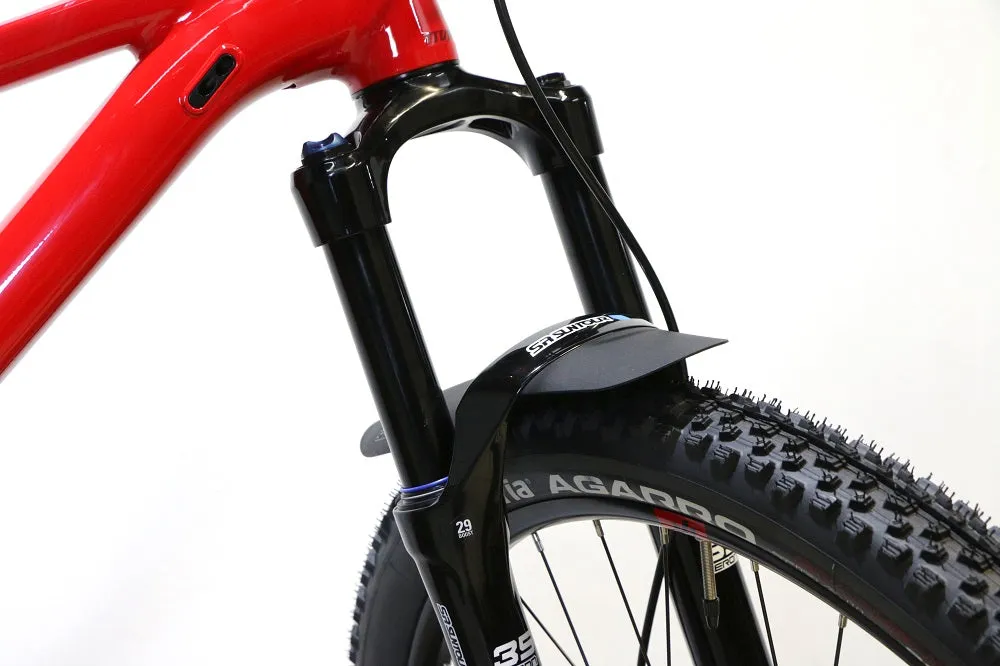

FORK
SUNTOUR ZERON35-BOOST 130MM
29″ / 130mm / SUNTOUR ZERON35-Boost EQ RC DS 15LH-110

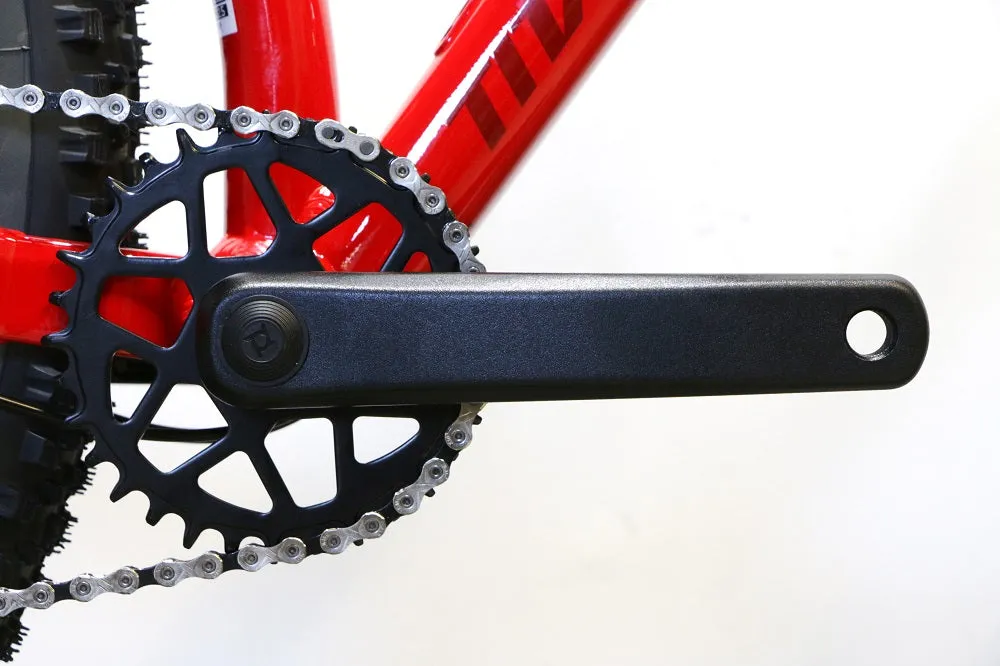

CHAINWHEEL
PROWHEEL A10Y-NW 32T
32T / 10 SPEED / ALLOY CRANK / STEEL CHAINRING / 52mm CHAINLINE BOOST 148 / S – 170mm CRANKARM / M L XL – 175mm CRANKARM

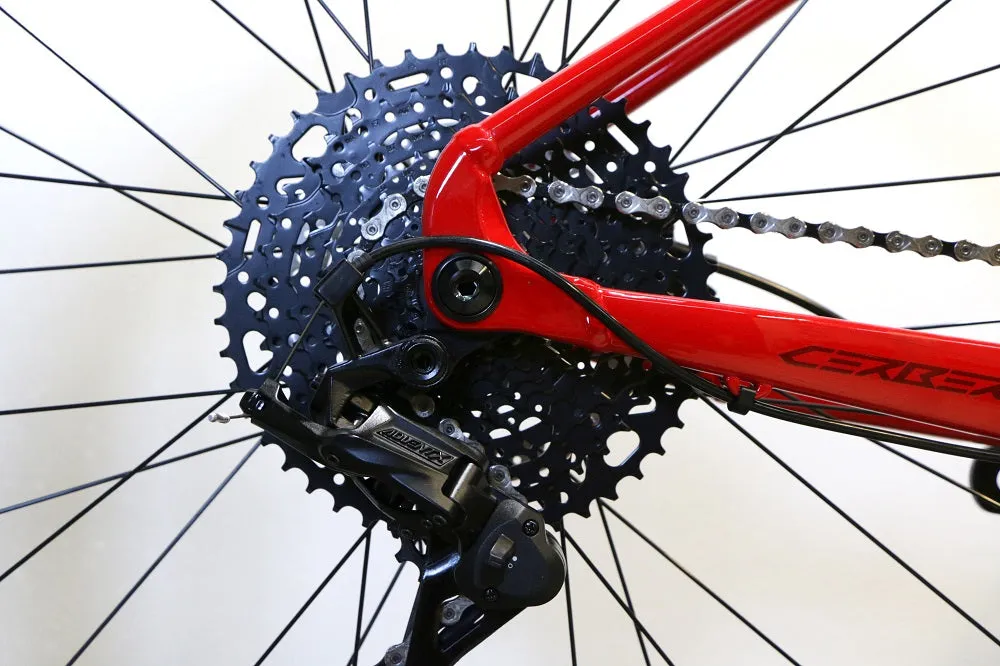

DERAILLEUR REAR
MICROSHIFT ADVENT X RD-M6205GM
SHIFTER RIGHT
MICROSHIFT TRAIL PRO
CHAIN
KMC 10
FREEWHEEL
MICROSHIFT CS-G104 11-48T
BB SET
CH-52
SPEED
1 X 10 SPEED
BRAKE LEVER
TEKTRO
BRAKE FRONT
TEKTRO HD-M275 WITH 180MM ROTOR
BRAKE REAR
TEKTRO HD-M275 WITH 180MM ROTOR
RIMS
PRIME SLT
PRIME SLT TRAIL TL 32 HOLE
HUB FRONT
FORMULA 511 32H BOOST
FORMULA 511 32H CL 15 X 110MM
HUB REAR
FORMULA 3248 32H BOOST
FORMULA 3248 32H CL 12 X 148MM
SPOKES
STAINLESS BLACK 14Gx290mm / 14Gx288mm
TUBE
29″ F/V
TYRES
VITTORIA AGARRO 29" X 2.35"
TRAIL 120TPI NYLON / GRAPHENE 2.0 COMPOUND / TNT / ANTHRACITE SIDEWALL

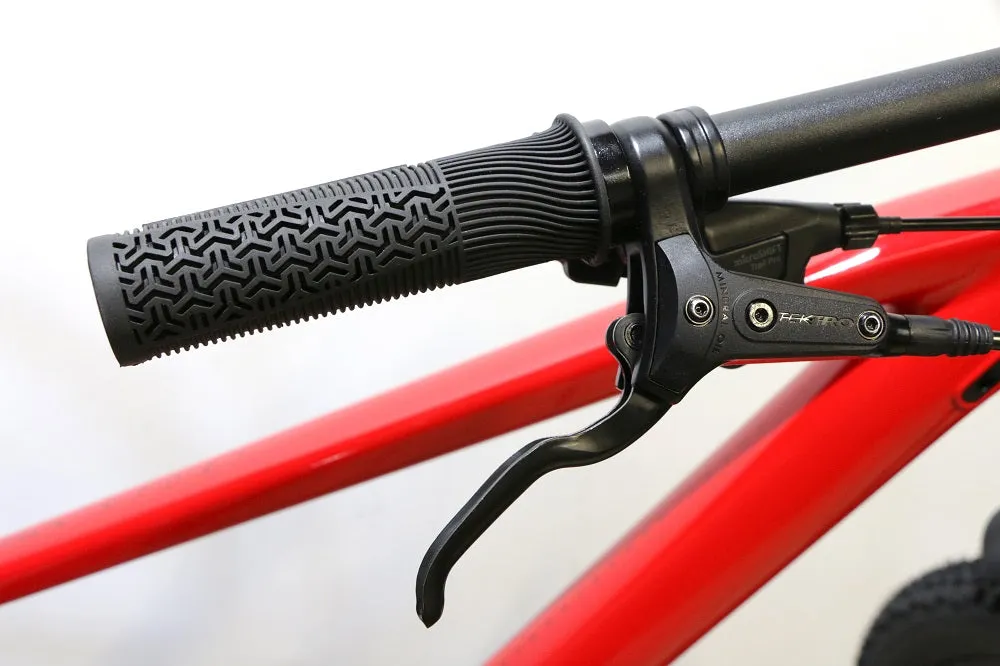

GRIP
TR SLIDELOCK GRIP

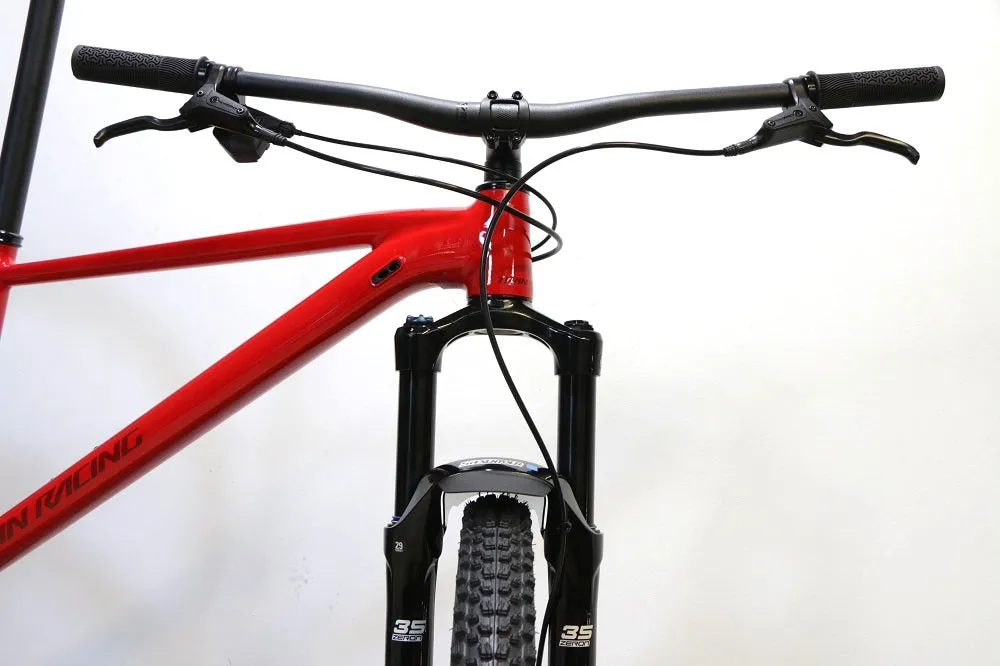

HANDLEBAR
TR COMP RISER, 780MM
PROMAX HB-3188DB R15 780MM
HANDLEBAR STEM
TR COMP H/BAR STEM
PROMAX DA-205 60MM = S M L 80MM = XL
HEADSET
FP-H871
SPACER
10mm X 2 PCS

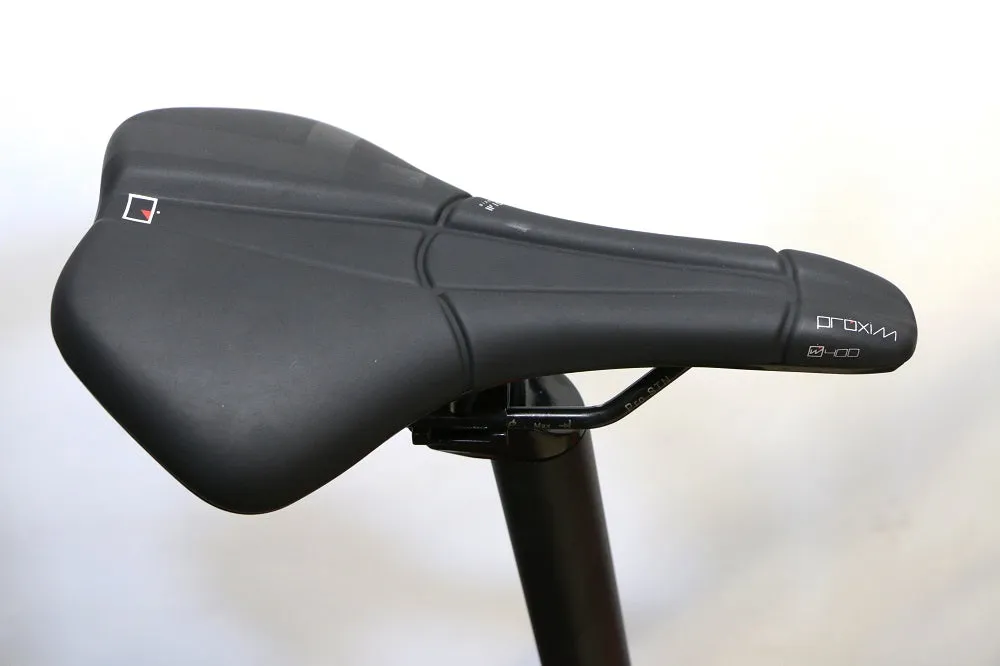

SADDLE
PROLOGO PROXIM W400 SPORT STN BLACK NYLON INJ
SEAT POST
X-FUSION MANIC DROPPER WITH REMOTE 34.9
X-FUSION MANIC 34.9 DROPPER POST WITH PLASTIC REMOTE – S = 100MM / M = 125MM / L XL = 150MM
SEAT CLAMP
MX-88 ALLEN KEY TYPE
